TIGER ArchiPrint

Digital Printing on Powder Coating

TIGER ArchiPrint is a combination of powder coating technology (TIGER Drylac® Series 168) with digital printing technology utilizing UV-LED outdoor inks (TIGITAL® Series 134/1.1) and has been designed with durability, superior UV and color resistance in mind for maximum decorative aesthetics and protection of the investment.

This system has then been subject to stringent quality tests and subsequently awarded with IFO certification according to Qualideco specification, Class 1 and Class 2, including cleaning certification according to DIN EN ISO 105-X12. We offer a Limited System Warranty up to 10 years.

Other selected substrates – for example liquid coated surfaces – are also possible (testing required).

  • Excerpt from test report in accordance with Qualideco specifications
    Test / Standard Testing Device Duration Result
    Determination of resistance to constant humidity (CH)
    according to DIN EN ISO 6270-2:2018*
    M-SC K 1000
    (Co. Liebisch)
    1000 h ​​​​​​​​​​​​​​
    Determination of resistance to humid atmospheres
    containing 0.2 l SOs according to DIN EN ISO 3231:1998*

    CON 1000-FL AKES
    (Co. VLM)

    24 cycles ​​​​​​​​​​​​​​
    Boiling test according to Qualideco (Ed. 2017) Method 2
    with cross-cut test according to DIN EN ISO 2409:2013*
    Pressure cooker
    Cross-cut template
    (Co. Elcometer)
    1 h ​​​​​​​​​​​​​​
    Heat treatment at 60 °C Convection Furnace
    (Co. Memmert)
    168 h ​​​​​​​​​​​​​​
    Color fastness to rubbing based on
    DIN EN ISO 105-X12:2002 with 10 double strokes (DS)
    Crockmeter 10 DS ​​​​​​​​​​​​​​
    Adhesion of sealants according to GSB (Ed. 2017) Sealant: DC 791
    (Co. Dow Corning)
    336 h ​​​​​​​​​​​​​​
    Determination of resistance to liquids
    according to DIN EN ISO 2812-3:2012
    - 24 h at RT ​​​​​​​​​​​​​​
    Accelerated weathering test according to
    DIN EN ISO 16474-2:2014* Method A Cycle No. 1
    Suntext XXL+
    (Co.Atlas)
    Q-Sun Xe-3 HBS
    Co. Q-Lab)
    2000 h (Class 2) ​​​​​​​​​​​​​​
    Florida natural weathering according to
    ISO 2810 with the exposition in a 5° angle facing South
    - 3 years (Class 2) ​​​​​​​​​​​​​​

    * The accreditation is only valid for the scope of accreditation listed in the document annex D-PL-1 1086-01-00.

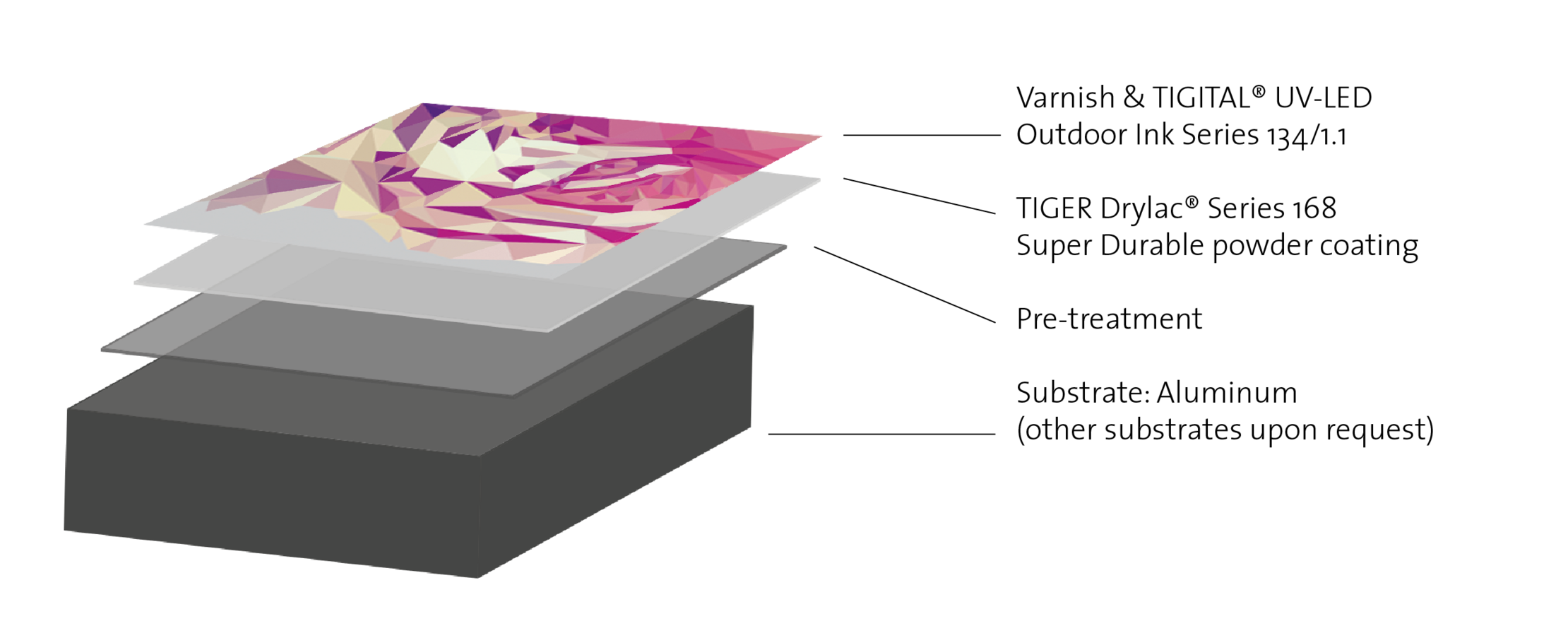

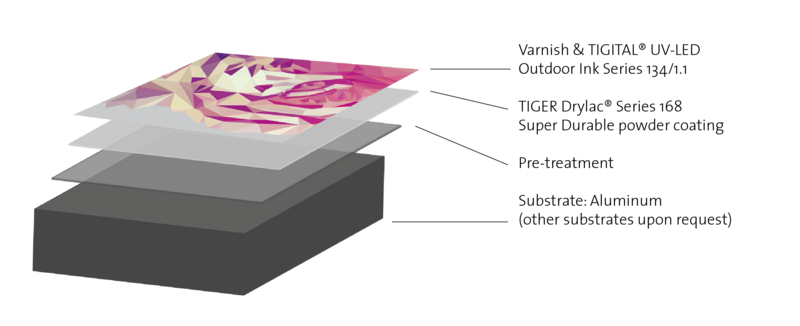

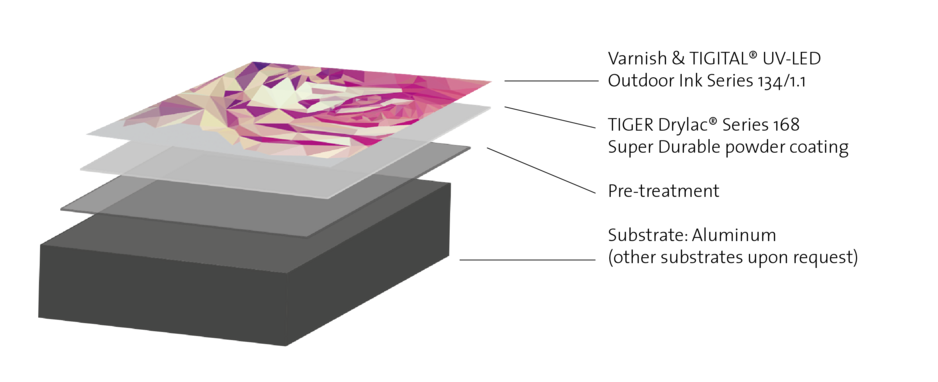

Perfectly Matched System Components

1  Competent project consulting
From the initial idea to the finished object:  TIGER supports your project from the very beginning. Our competent team will be happy to advise you on the design and color selection and supports you in the technical implementation.

2  Unlimited scopes for design
No limits for your creativity: TIGER ArchiPrint allows any image to be printed to your object. On request, we gladly recommend a design agency with the design of your artwork.

3  Powder coating with TIGER Drylac®
Function, aesthetics and value retention over many years: For the coating of your facade Super Durable TIGER powder coating is used. Numerous colors and effects as well as a limited warranty are available.

4  Customization with digital printing
Your desired motive on aluminum or other substrates: State-of-the-art digital printing with UV and color-stable TIGITAL® Inks sets powerful accents and underlines the aesthetics of your object.

5  Versatile, creative, ecofriendly
TIGER ArchiPrint combines the advantages of the green powder coating technology with innovative digital printing solutions. The result: easy-care, super durable aluminium facades with character and format.

Download all information here​​​​​​​.

Request your sample now!

See for yourself! We’ll gladly send you one or more samples free of charge.
The samples shown are intended to give a first impression of the design possibilities. In general any design can be applied to your object.
